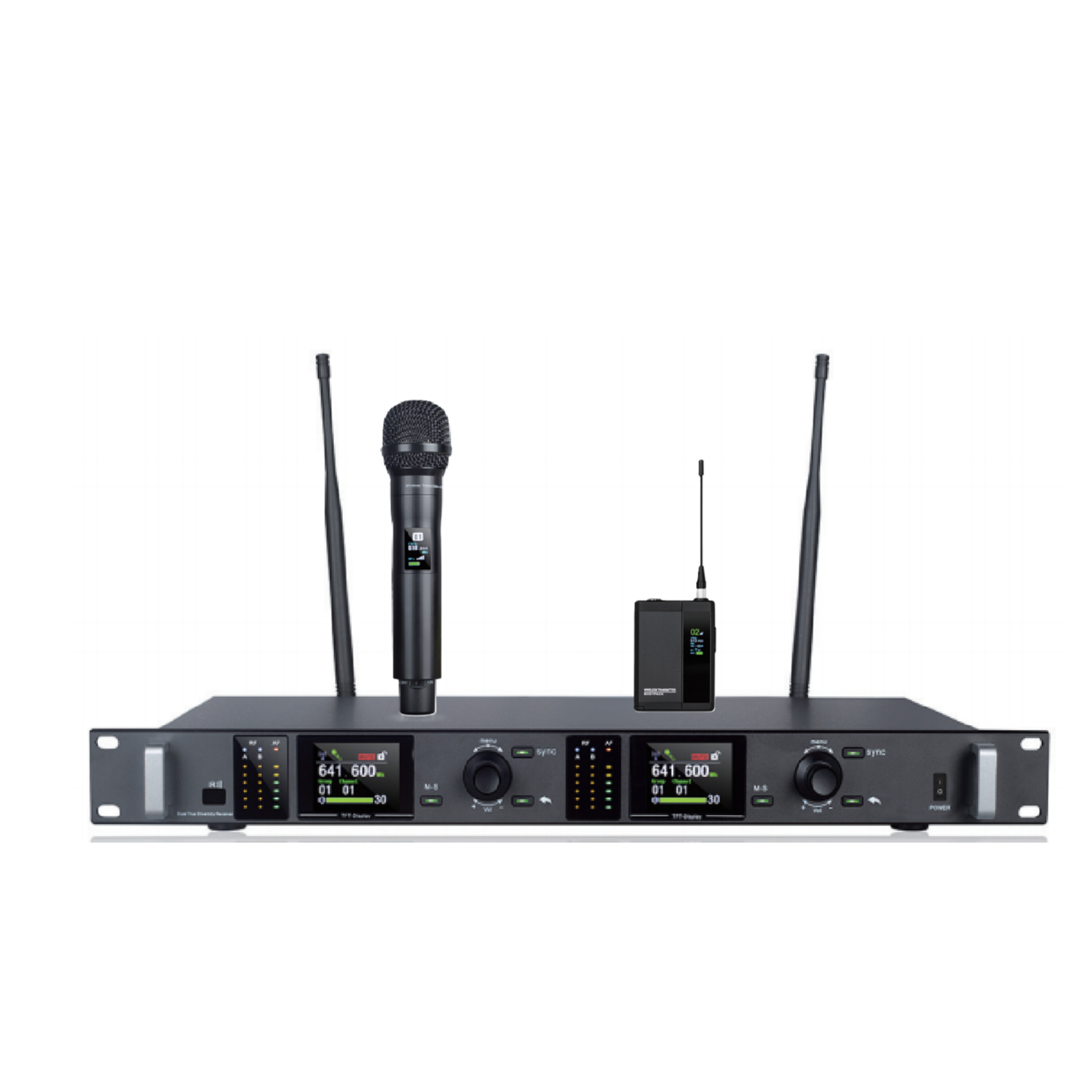

Traditional Reliability Meets Massive Scalability
The LS-900 embraces a “Traditional Style” True Diversity architecture, utilizing physical dual-antenna receiving circuits to completely eradicate RF dead spots. Designed for large-scale festivals and complex broadcast environments, it provides an astonishing 6,000 adjustable channels within the 610-698MHz UHF band.
Sonically, the system boasts a >118dB dynamic range and a wide 35Hz-20KHz frequency response, capturing the deepest lows and crispest highs without distortion (<0.5%). Whether you deploy the dynamic cardioid handhelds or the discreet bodypack transmitters, the LS-900 delivers uncompromised, studio-grade audio to the mixing console.
Integrator Advantages
-
6,000 Selectable Channels
Massive frequency pool ensures zero crosstalk in RF-congested city centers. -
Dual Battery Ecosystem
Transmitters accept both 14500 Lithium rechargeable and standard 1.5V AA batteries. -
Exceptional Image Suppression
>100dB image suppression with -105dBm high-sensitivity reception.
LS-900 Receiver Specifications
| Parameter | Details |
|---|---|
| Frequency Range | 610-698MHz |
| Bandwidth & Channels | 42M/60M Bandwidth | Maximum 6,000 Channels |
| Frequency Stability | ±10PPM |
| Acoustic Performance | Dynamic Range: 118dB | Response: 35Hz-20KHz | THD: <0.5% @ 1KHz |
| Signal & Interference | SNR: ≥ 110dB | Image Suppression: >100dB |
| Sensitivity & Power | Sensitivity: -105dBm (sinad ≥ 12dB) | Power Spec: 1500mA |

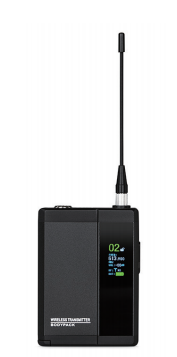

Handheld / Bodypack Transmitter Specifications
| Parameter | Details |
|---|---|
| Frequency Range & Bandwidth | 610-698MHz | Bandwidth: 88M |
| RF Power & Offset | 15/30mW Switchable | Max Frequency Offset: 65KHz |
| Acoustic Core | Dynamic Coil | Cardioid (Heart-shaped) Directivity |
| Power Requirement & Battery Life | Supports 1x 14500 Lithium OR 1x 1.5V AA Battery | 10 Hours Continuous Use |
Global Manufacturing & Stage Solutions
Maccus Audio is the premier factory partner for AV rental companies and global integrators. Our true diversity architectures are built to withstand the rigors of touring. Contact us for OEM branding, bulk project pricing, and custom frequency band configurations.
