Modular Architecture: Build Your Perfect System

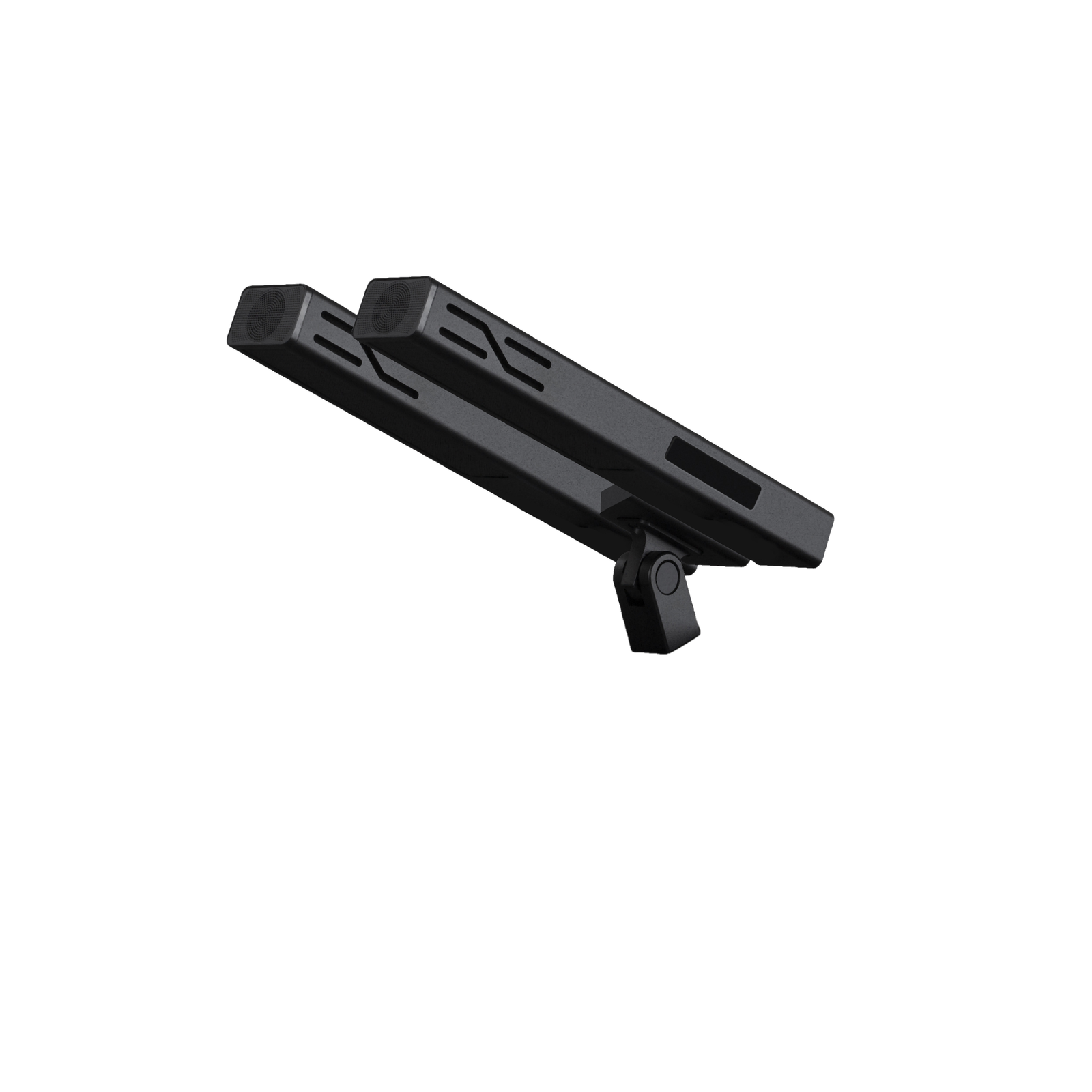

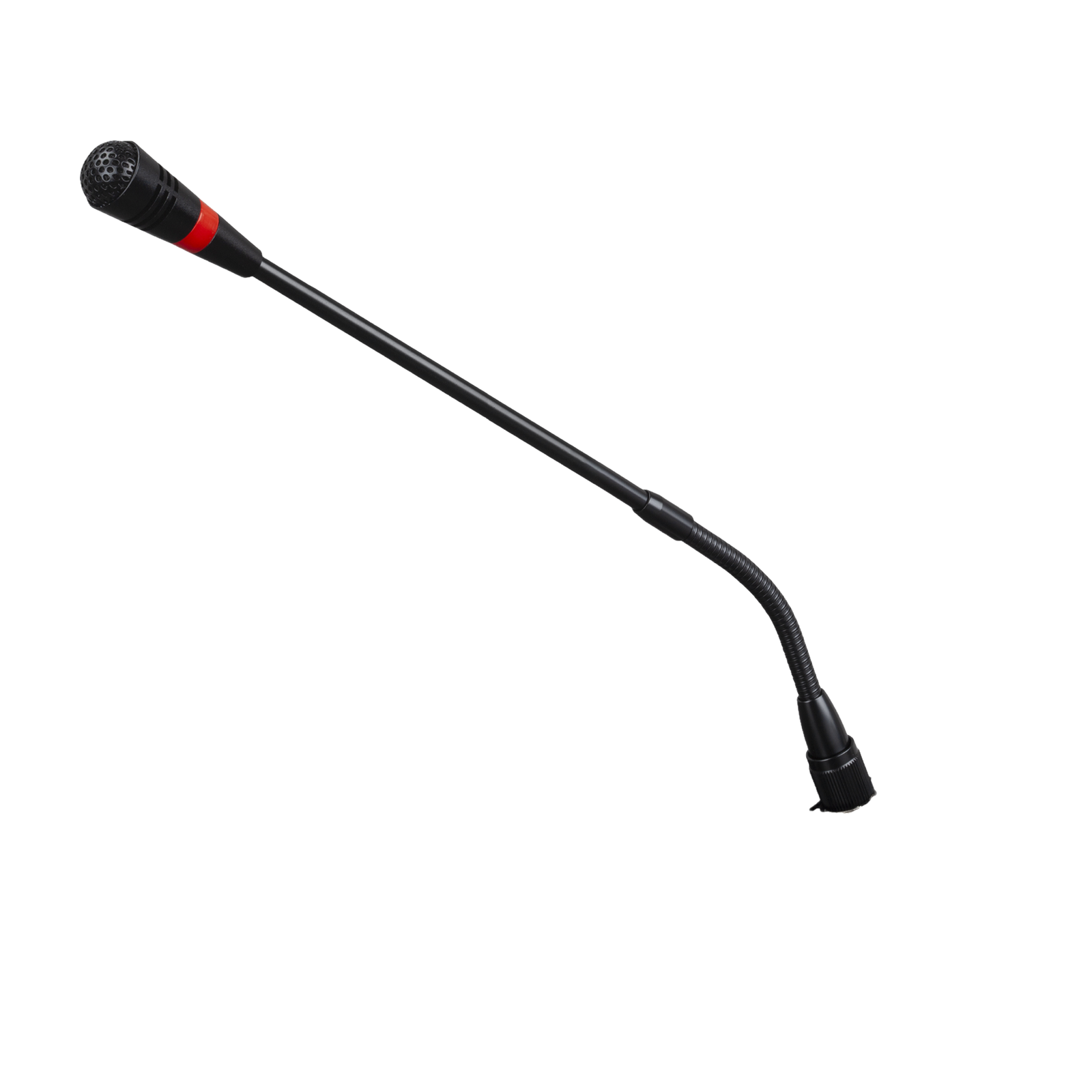

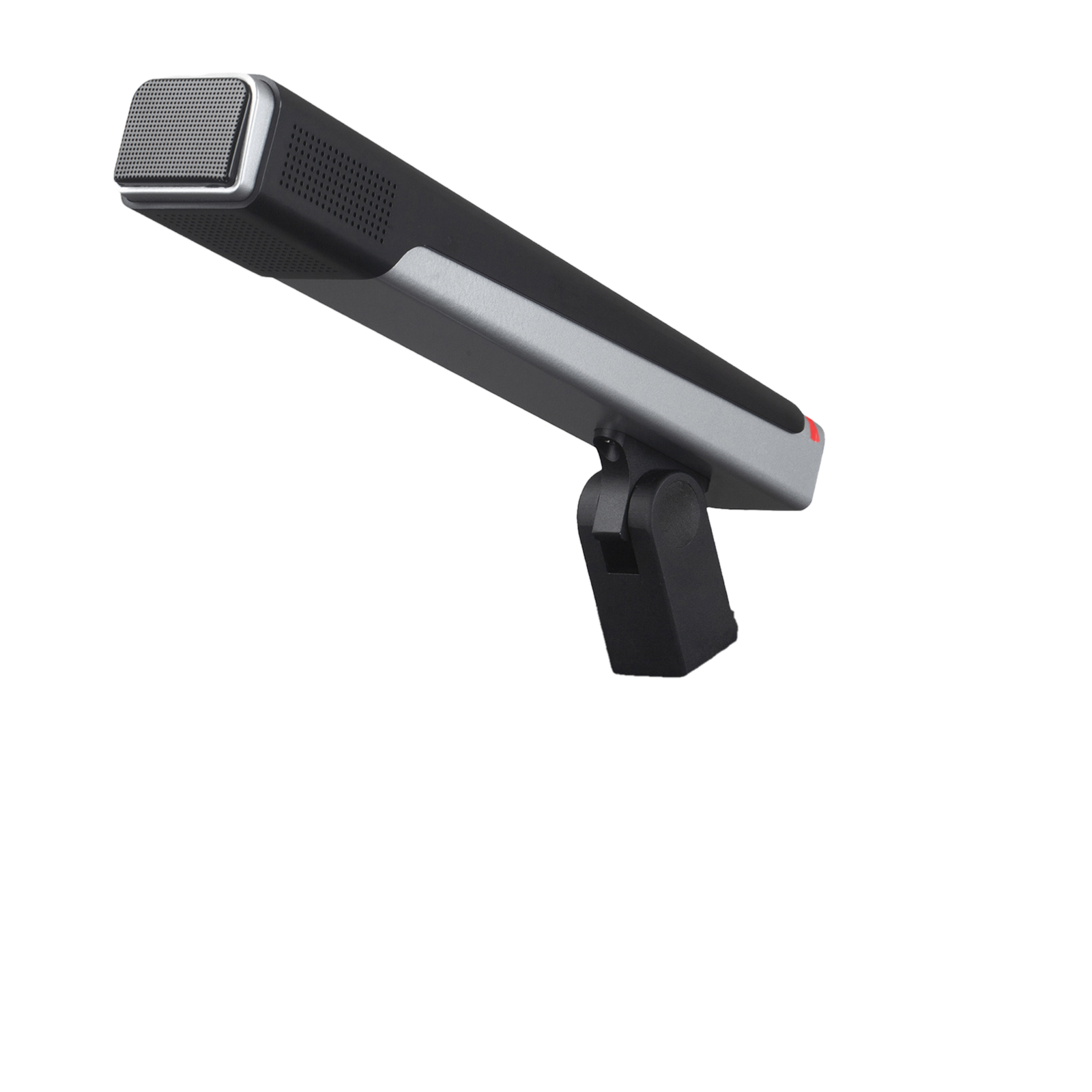

The MKS-8636 series is engineered for maximum flexibility. Global integrators can freely combine different microphone bases (2.8″ or 4.0″ touch screens) with varying microphone stems (Standard Long Gooseneck, Square Tube, or Dual-Capsule). Supported by a dual-wiring interface (RJ45 and 8-Core), it adapts to any project scale.
DSP Audio Processing
Built-in high-performance DSP processor with 5-segment equalization and advanced noise reduction[cite: 62].
Massive Scalability
Supports up to 256 units directly, and expandable up to 1,200 units via extender hosts[cite: 12].
Camera Tracking
Integrated RS-485/422 interfaces supporting SONY VISCA and PELCO P/D protocols[cite: 21, 34].
router

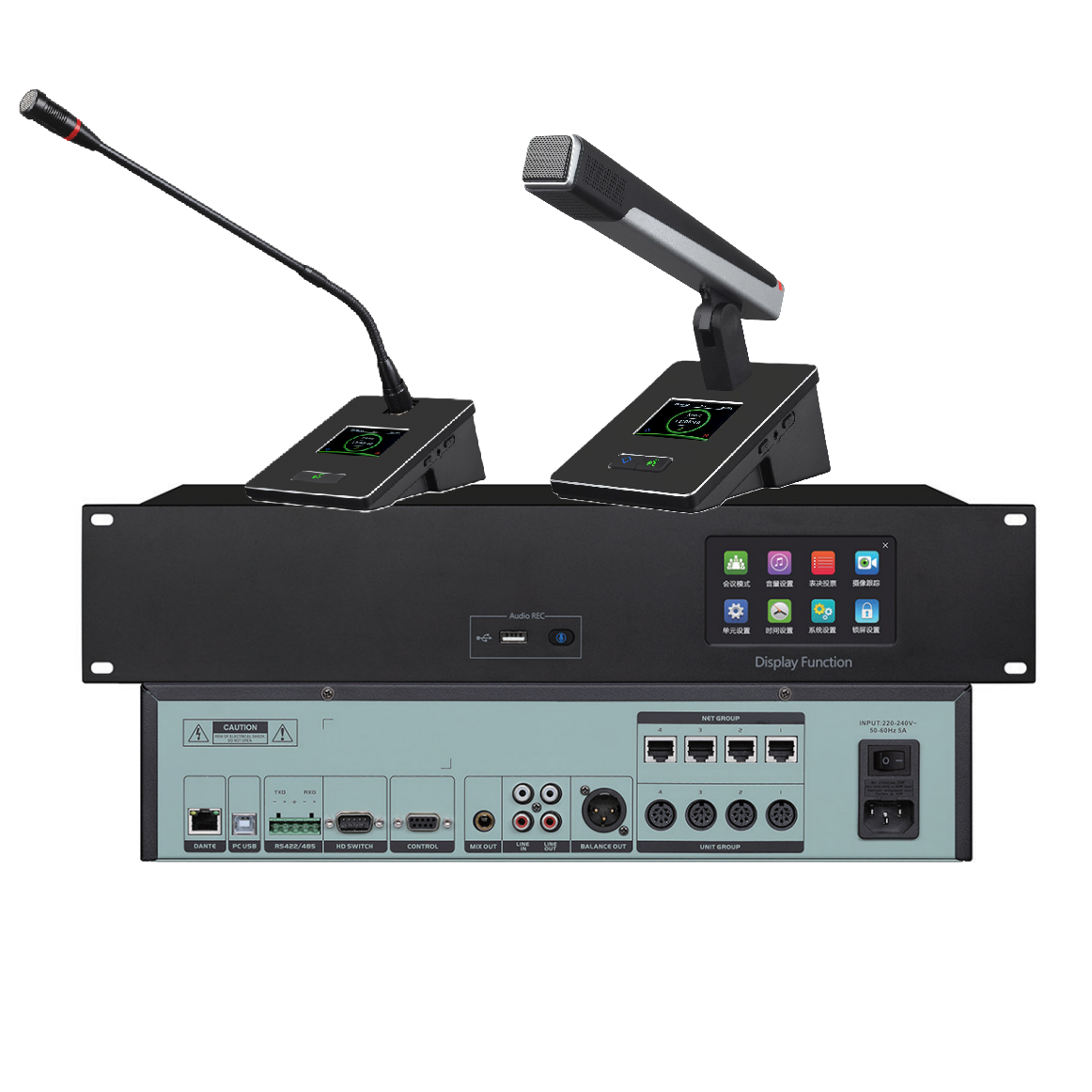

MKS-8636M Central Control Host Specifications
| Feature | Specification Details |
|---|---|
| Display Interface | 4.3-inch full view IPS capacitive display screen [cite: 7] |
| Microphone Interfaces | 4x RJ45 (Closed-loop Ethernet) & 4x DIN-8 (8-Core) [cite: 9, 11] |
| System Capacity | Max 80 units via RJ45; Max 100 units via 8-Core. Expands to 1200 [cite: 10, 11, 12] |
| Conference Modes | FIFO, APPLY, FREE, LIMITED, VOICE Control [cite: 14] |
| Audio Performance | Freq: 20Hz-20kHz | S/N Ratio: >96dBA | THD: <0.05% [cite: 28, 29, 30] |
| Recording & Audio I/O | USB High-fidelity WAV recording. XLR Balanced x1, 6.35mm x1, RCA x1 [cite: 8, 39] |
mic_double

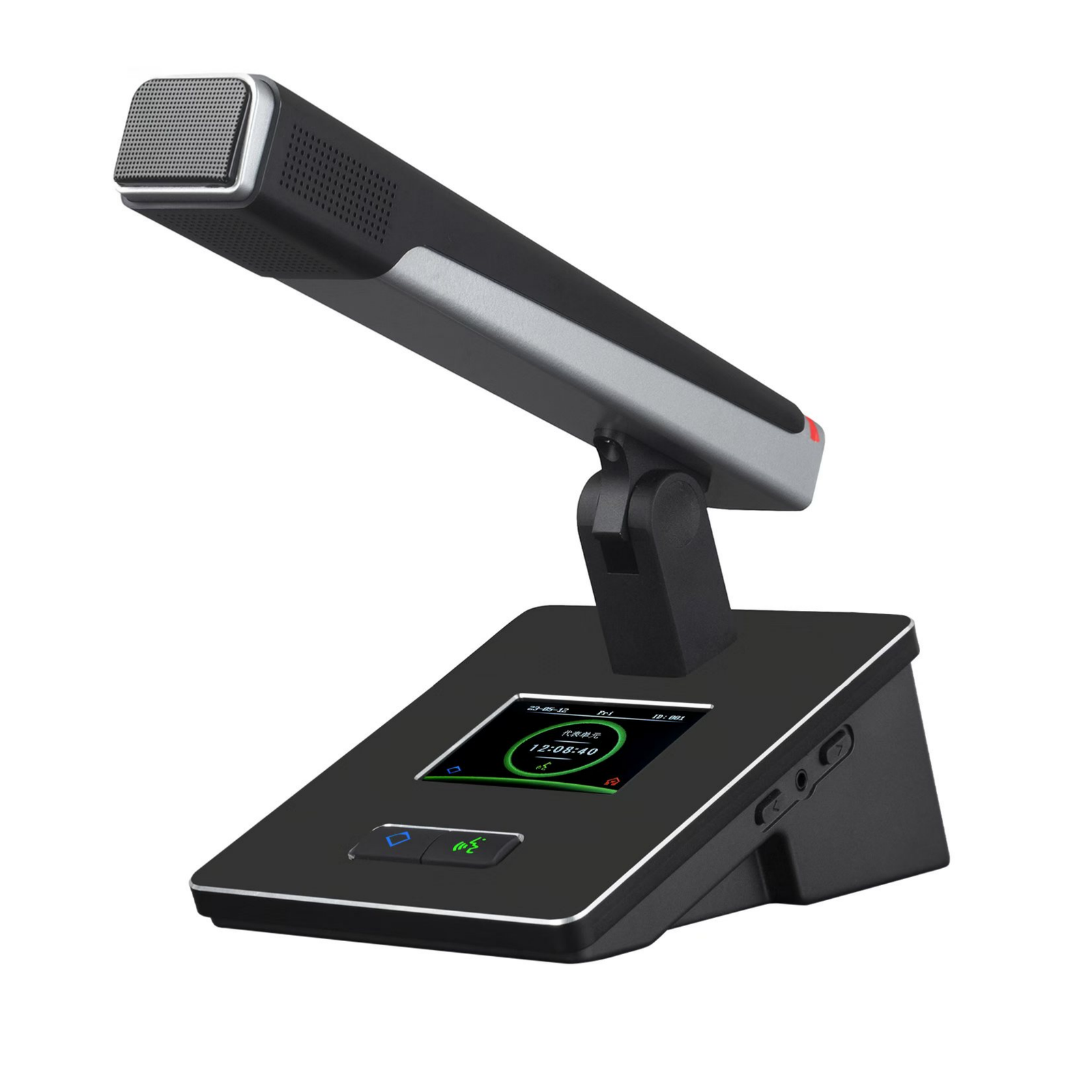

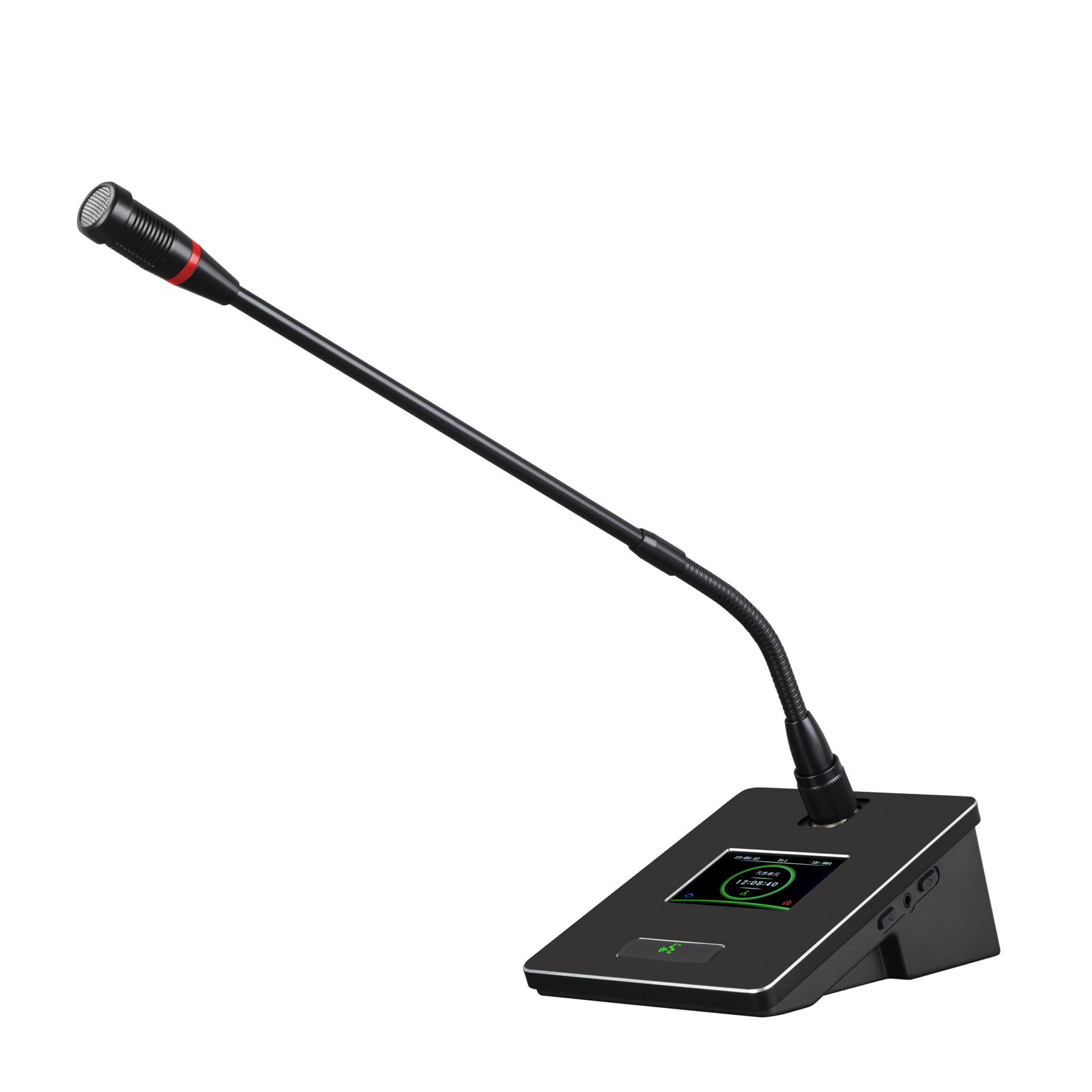

MKS-8636C/D Conference Units (Interchangeable)
| Parameter | Value / Description |
|---|---|
| Panel Design | High-end metal panel design, modern aesthetic [cite: 58] |

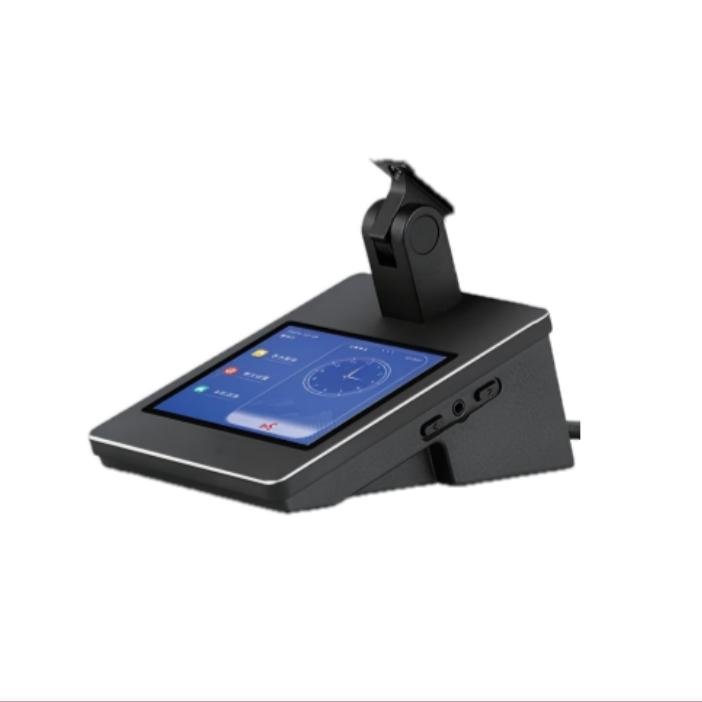

| Display Options | 2.8-inch TFT touch screen (Standard) or 4.0-inch large display [cite: 66, 83] |
| Mic Core & Switch | High fidelity capacitor core. Touch switch with colored speaking light ring [cite: 61, 64, 65] |
| Chairman Functions | Priority control, approval of delegate requests, unlimited speaking [cite: 68, 69, 70] |
| Acoustic Specs | Sensitivity: -46 dBV/Pa | Max SPL: 125dB | Crosstalk: >80dB [cite: 75, 80, 81] |
settings_input_component
System Expansion & Cabling Accessories

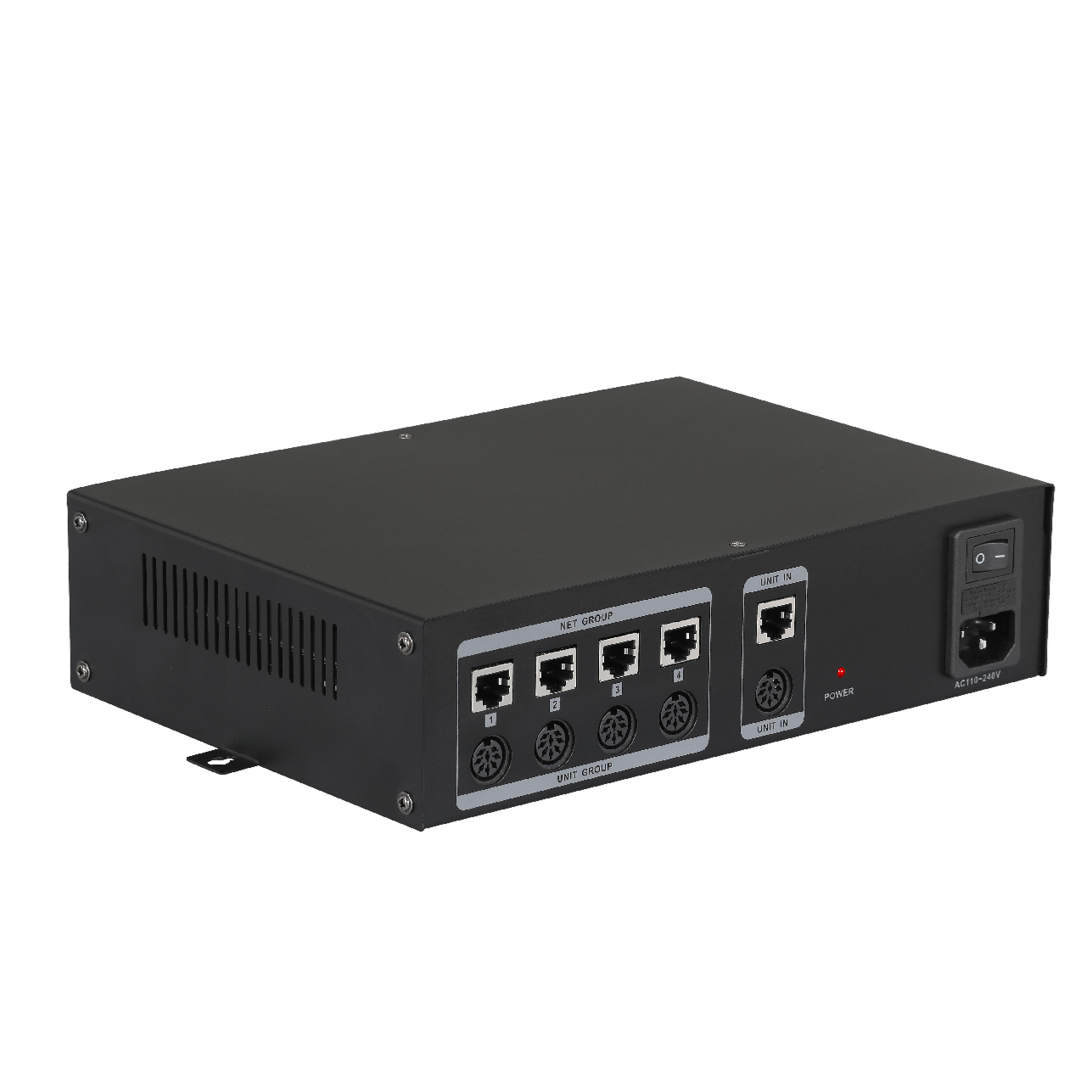

2-in-1/8-out Extender Host
- ✓ Total Power: 350W [cite: 49]
- ✓ 4x 8-Pin Plugs & 4x RJ45 Interfaces [cite: 53]
- ✓ Supports up to 100 extra units (8-core) or 80 extra units (RJ45) per host [cite: 43, 44]

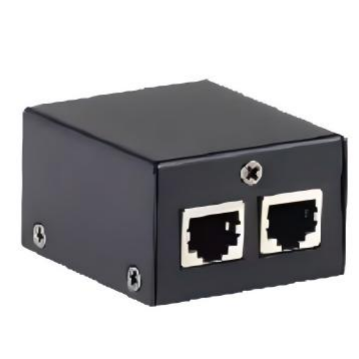

Cable Conversion Box
Seamlessly convert between 8-core wire connections and standard Ethernet cables, providing contractors with ultimate flexibility in complex routing environments.
Compatible with all MKS-8636 handle units featuring T-shaped 8-core or RJ45 connections[cite: 60].
Factory-Direct OEM & ODM Services
As a primary manufacturer based in Enping, China, Maccus Audio provides highly scalable customization for the MKS-8636 system. We offer private labeling, custom UI design for the touch screens, and bespoke microphone stem lengths to suit specific architectural requirements. Compliant with international standards IEC60914 and GBT15381-94[cite: 3].
