Looking for Automatic PTZ Camera Tracking?
Discover our advanced MKS-8831 PRO Video Tracking Edition designed for smart AV boardrooms and international video conferences.
Redefining Wireless Communication for B2B Environments
The MKS-8831 is a premium Wireless Hand-in-Hand Discussion Conference System engineered for maximum flexibility. Utilizing Ultra-High Frequency (UHF) radio waves for audio transmission and a 433MHz control band, it delivers crystal-clear sound without the hassle of cable routing.
Designed for scalability, the system supports a massive capacity of up to 999 microphones by linking up to 10 hosts. Each unit features a high-brightness 2.4-inch IPS TFT display and a metal panel design, providing a high-end, solemn aesthetic suitable for global distribution and large-scale projects.
Target Audience & Use Cases
-
corporate_fare
Corporate Boardrooms
Cable-free setup preserves the integrity of high-end boardroom tables. -
account_balance
Government & Council Chambers
Anti-electromagnetic interference circuits block mobile phone noise, ensuring uninterrupted critical discussions. -
hotel
Hotels & Multi-purpose Halls
Rapid deployment and 60m-80m transmission range make it ideal for flexible room configurations.
router

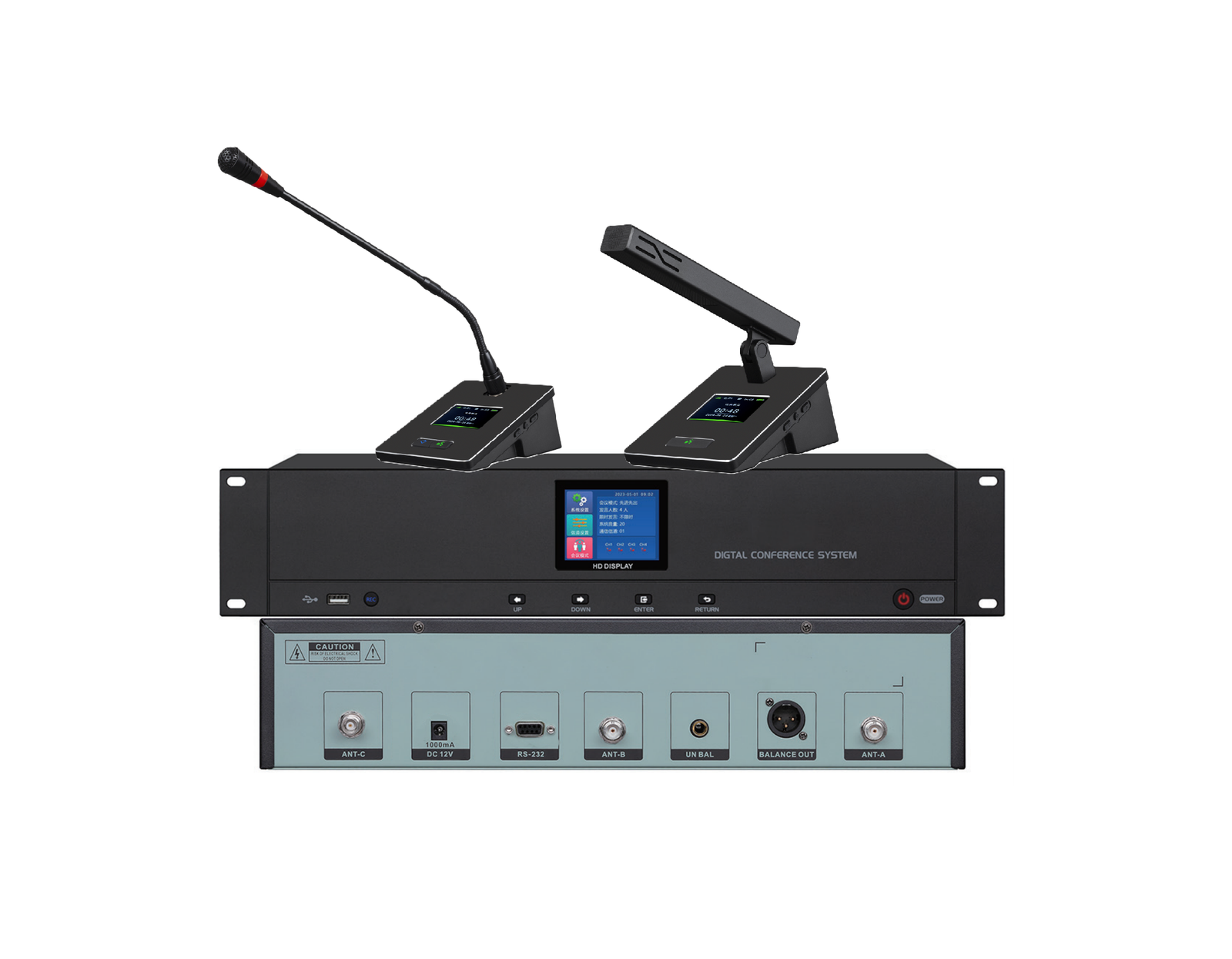

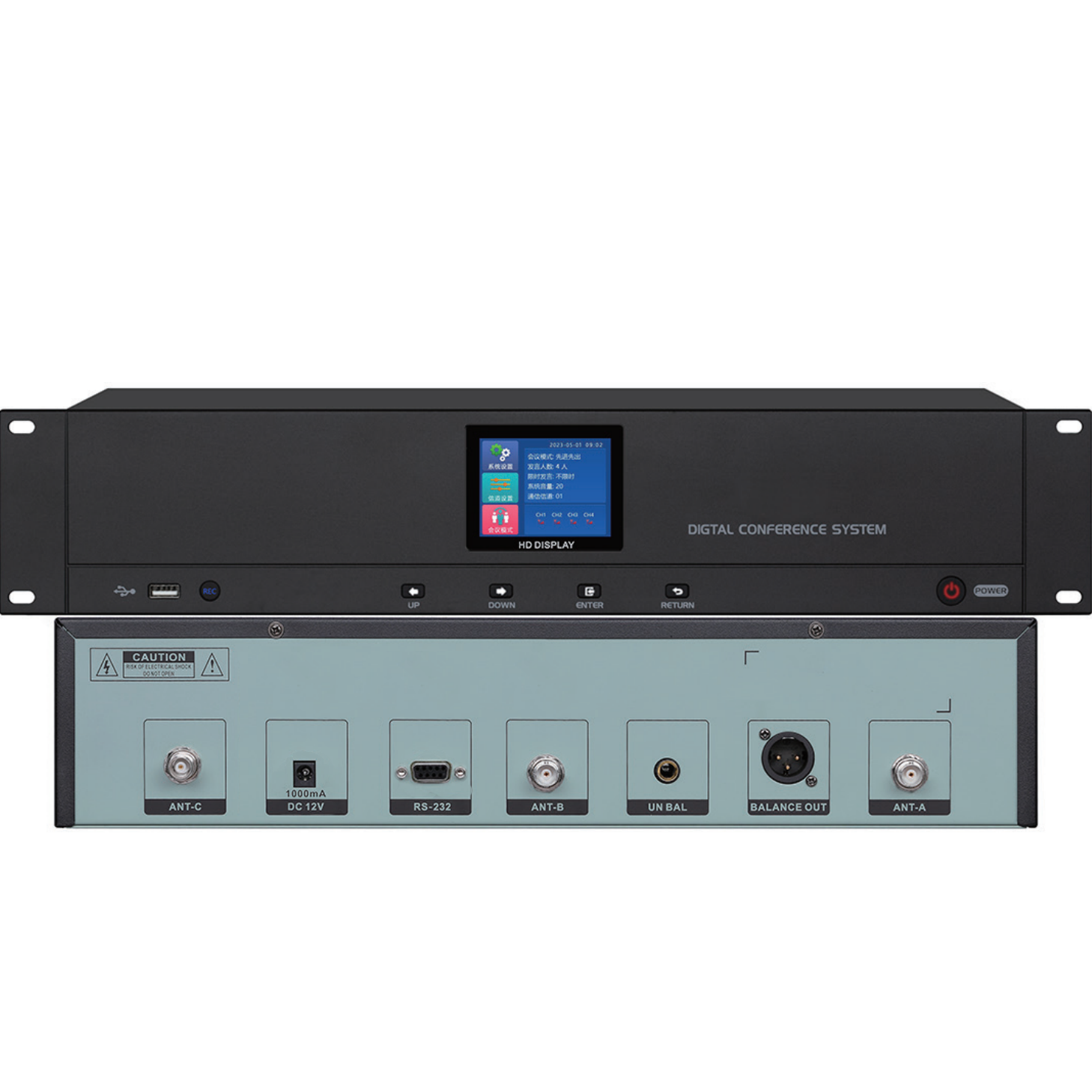

MKS-8831M Wireless Host Specifications
| Feature | Specification Details |
|---|---|
| System Capacity | Max 999 units (up to 10 hosts). Single host supports 99 units. |
| Audio Transmission | UHF (610MHz – 670MHz) / 4 Channels |
| Control Band & Range | 433MHz (422.4 – 439.4MHz) / 60m ideal indoor radius |
| Audio Quality | Bandwidth: 40Hz~16KHz | SNR: >85dB | THD: ≤0.8% |
| Smart Controls | One-click shutdown for all mics, Central Control via RS232 |
| Recording | Built-in USB recording function |
mic

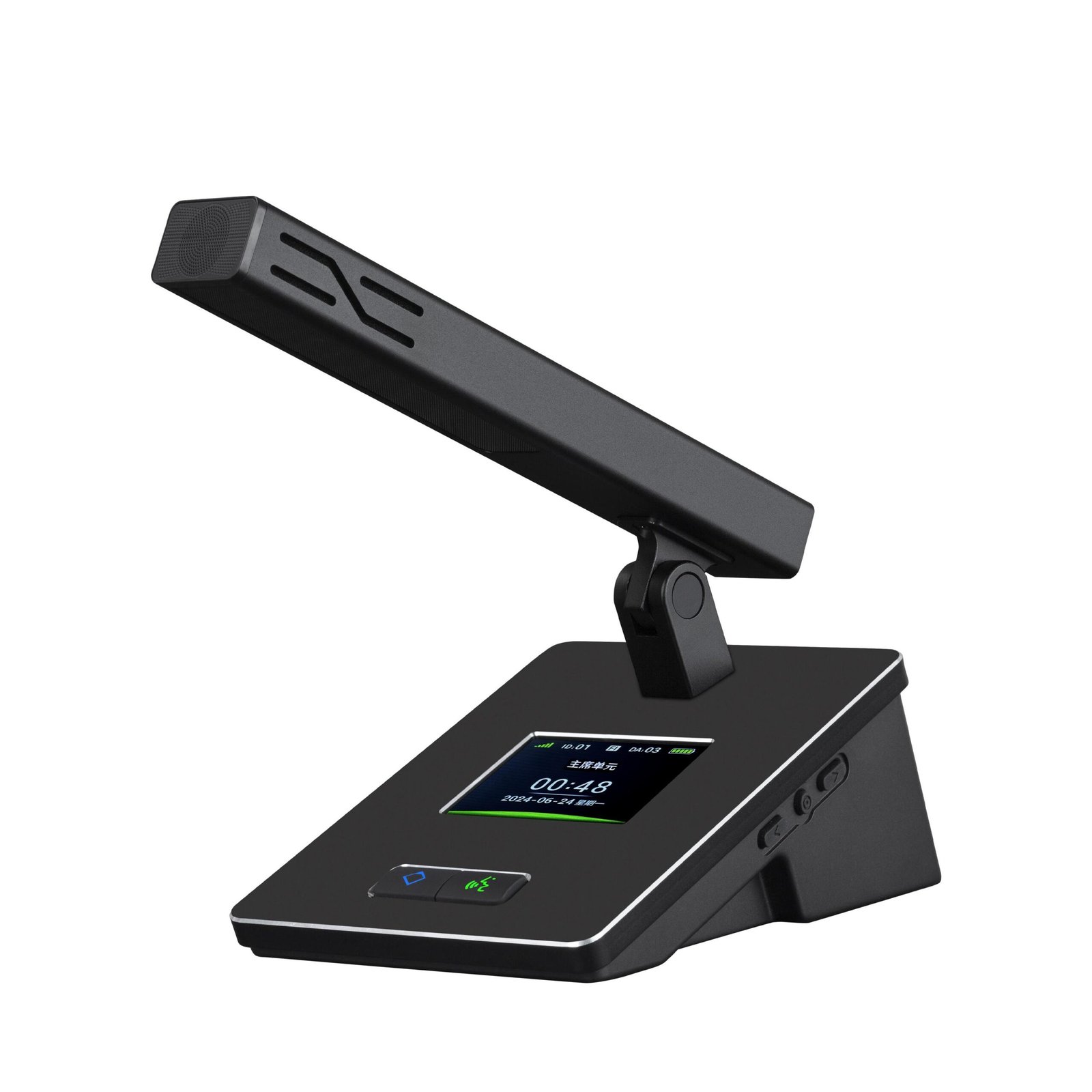

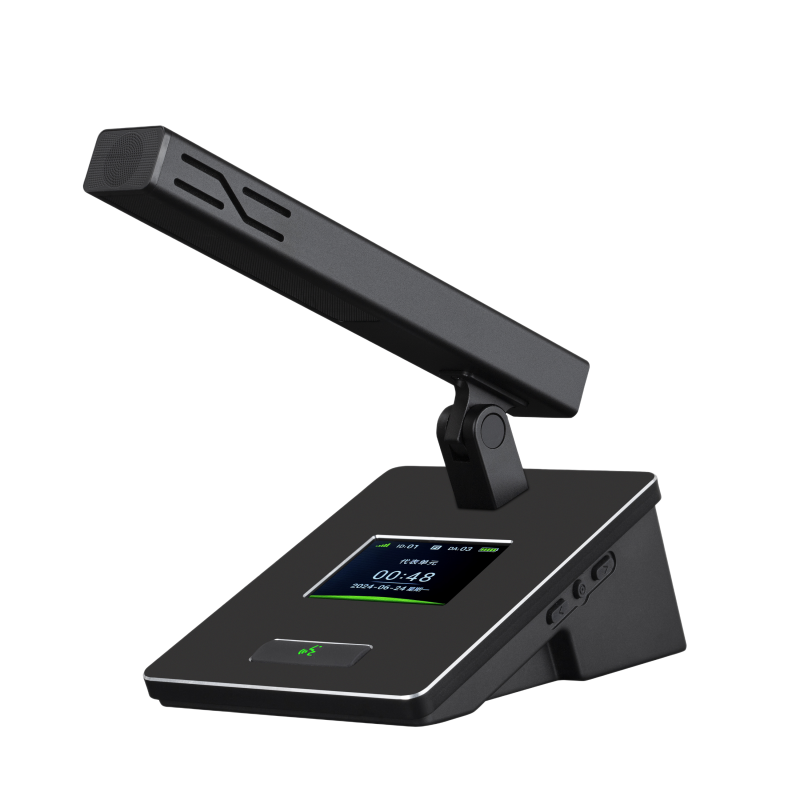

MKS-8831C/D Wireless Microphone Units
| Parameter | Value / Description |
|---|---|

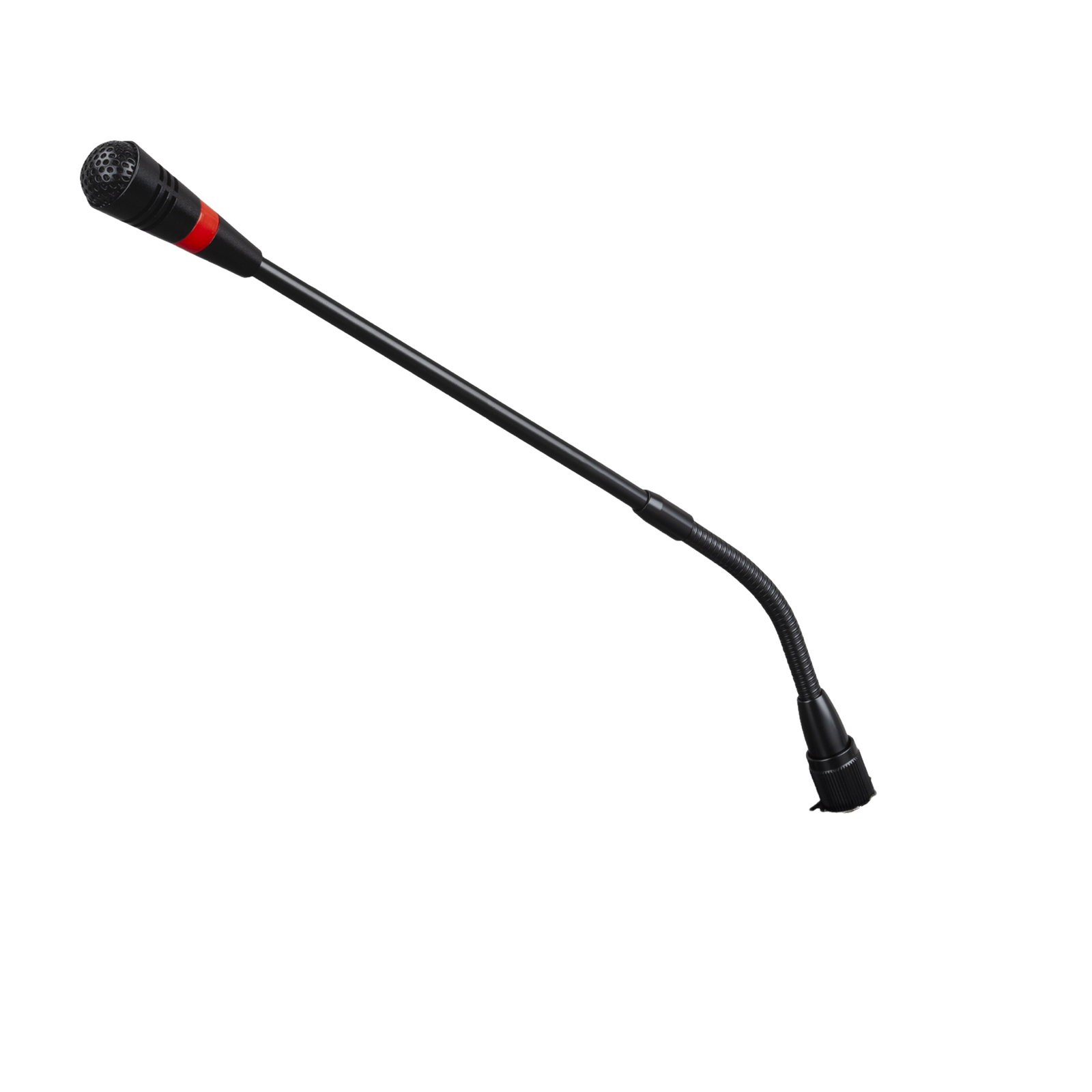

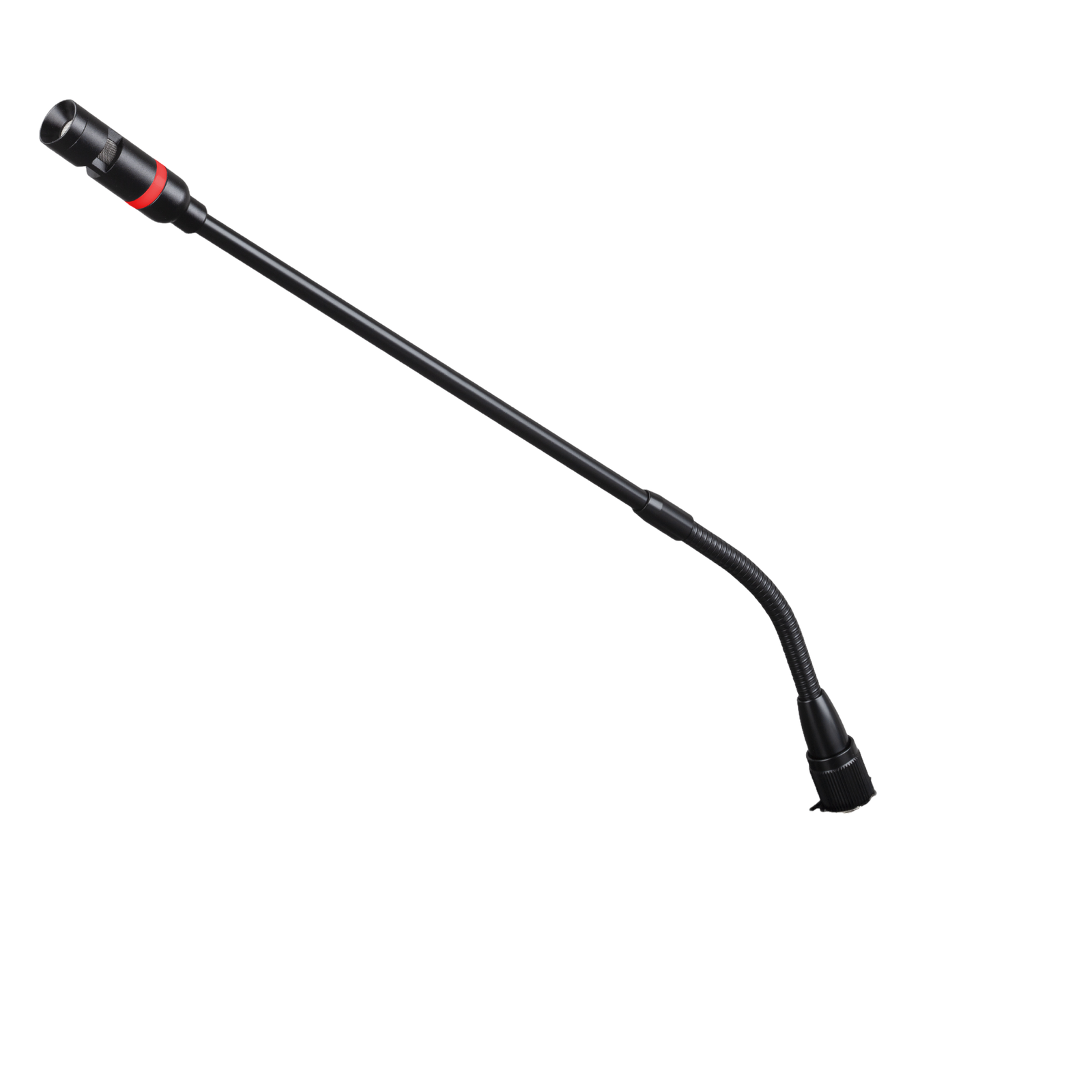

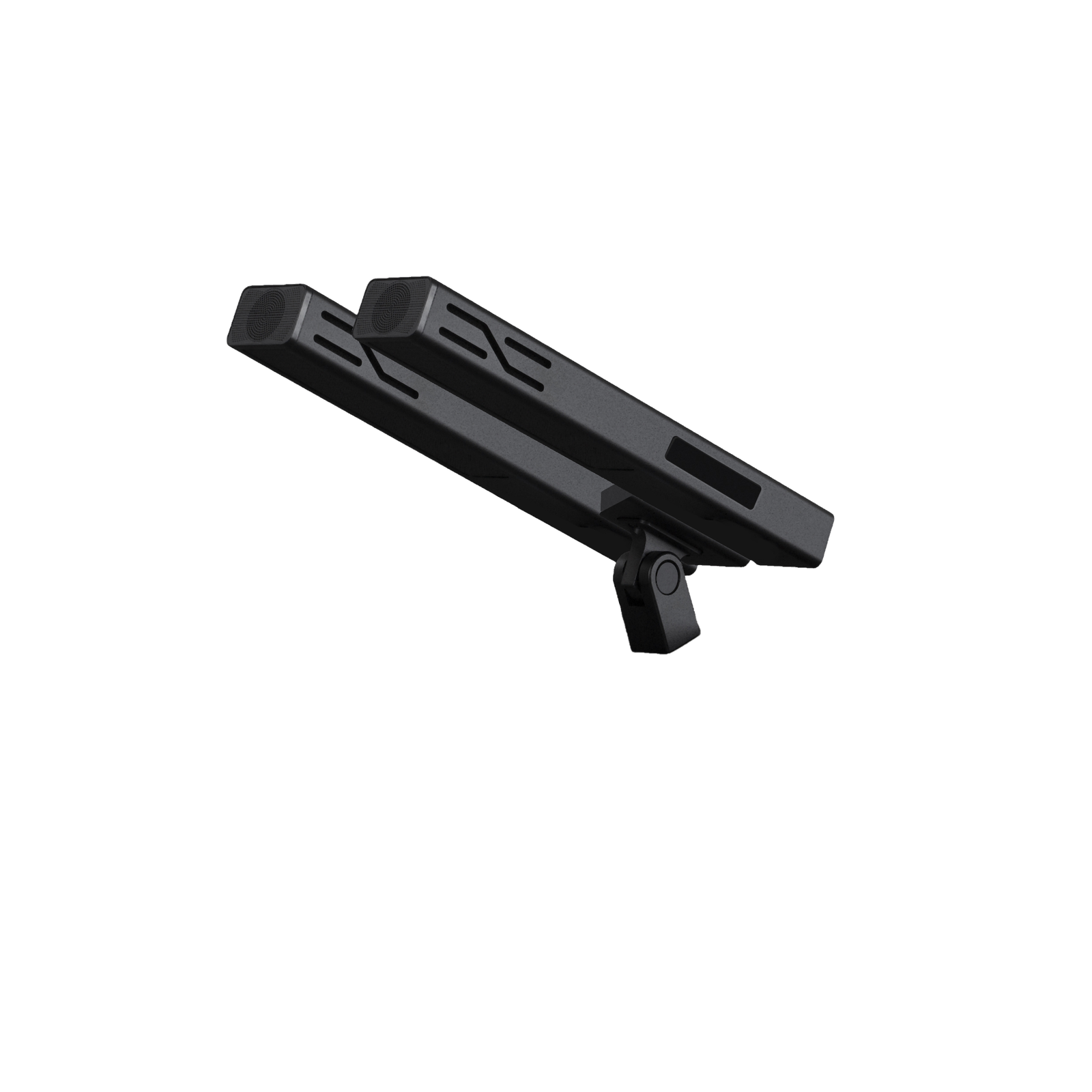

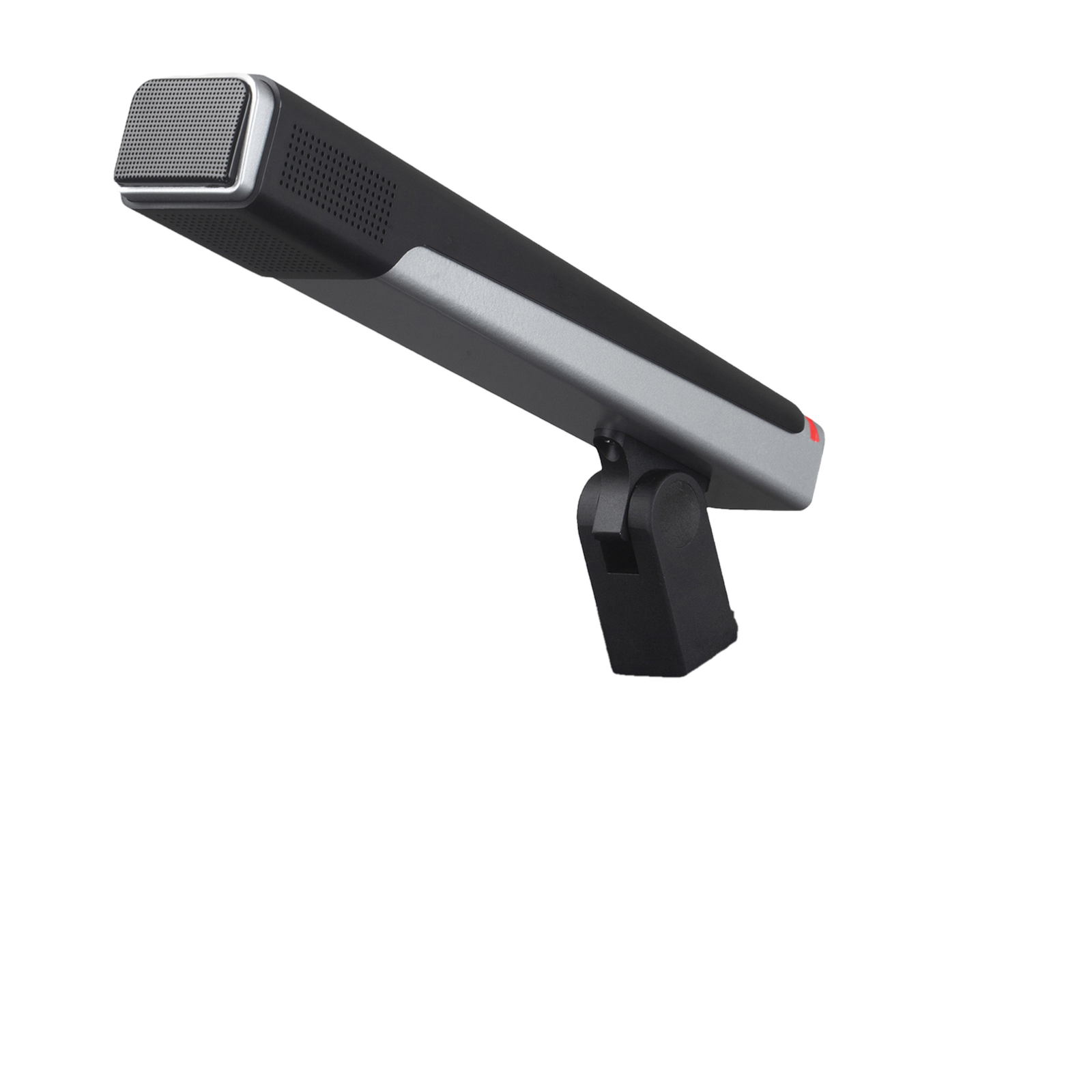

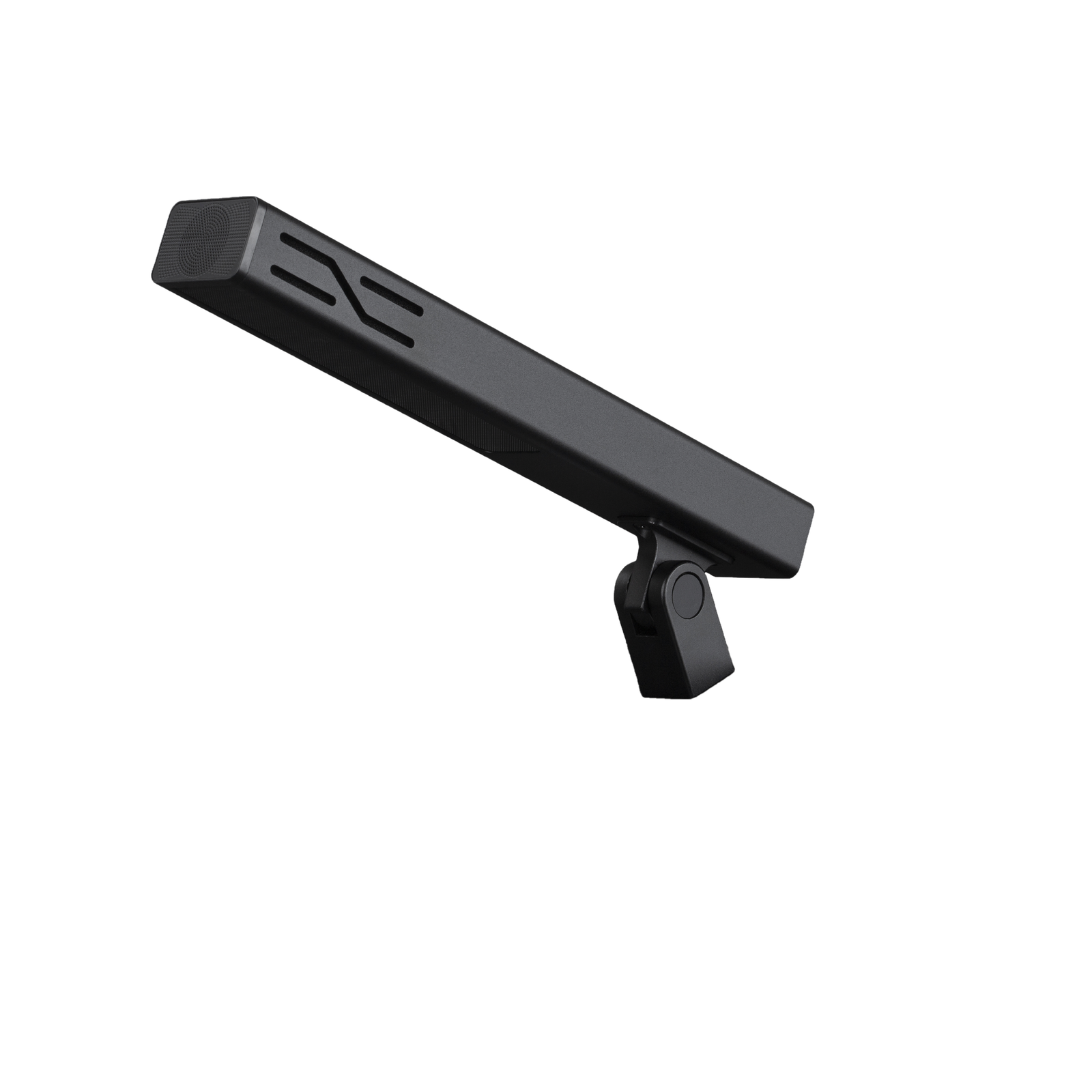

| Design & Stem Options | Metal panel. Interchangeable Aluminum Alloy Square Tube (adjustable pitch) or Long Gooseneck. |
| Display Interface | 2.4-inch high brightness IPS TFT (shows battery, channel, volume, time). |
| Battery & Charging | Lithium battery with TYPE-C interface. ≥8 hours continuous speech, ≥12 hours standby. |
| Audio Core | High fidelity capacitor core, 20Hz~20KHz bandwidth. |
| Buttons & Indicators | Sensitive touch switch (Green: standby, Red: speaking). Electronic side-volume control. |
Frequently Asked Questions (B2B)
Q: How many microphones can speak simultaneously?
A: The MKS-8831 system allows up to 4 units to speak simultaneously. Among these, the Chairman unit can authorize up to 2 delegate units at the same time.
Q: Does mobile phone interference affect the wireless signal?
A: No. The units feature a new concept of anti-electromagnetic interference circuit design that specifically eliminates noise caused by smartphones and other electronic devices.
Q: Can I mix different microphone stem types in the same project?
A: Yes. The modular base design allows distributors and integrators to freely combine modern Square Tube microphones or classic Long Gooseneck poles within the same conference setup.
videocam Upgrade to Intelligent Video Tracking
Need to automatically focus on active speakers during international video conferences? The PRO edition features an integrated RS-485 interface supporting SONY VISCA & PELCO protocols for seamless PTZ camera integration.
Factory-Direct OEM & ODM Services
As a leading professional audio manufacturer, Maccus Audio provides highly scalable customization for the MKS-8831 wireless system. We offer private labeling, tailored frequency bands, and custom user interfaces for global distributors and government procurement projects.
