MKS-9800-X4 Professional True Diversity Wireless Microphone System (One-to-Four)

  • Model：MKS-9800-X4

The MKS-9800-X4 is an elite “One-to-Four” True Diversity UHF Wireless Microphone System designed to maximize efficiency in high-demand AV environments. By supporting four independent microphone channels on a single receiver host, it dramatically saves rack space while ensuring zero signal dropouts. Driven by advanced PLL (Phase Locked Loop) technology and offering 100-200 selectable channels, the system delivers unmatched RF stability. Compatible with a versatile range of handheld, long gooseneck, and square-tube transmitters, it is the ultimate scalable solution for auditoriums, panel discussions, and large-scale staging.

REQUEST A QUOTE
4-Channel True Diversity

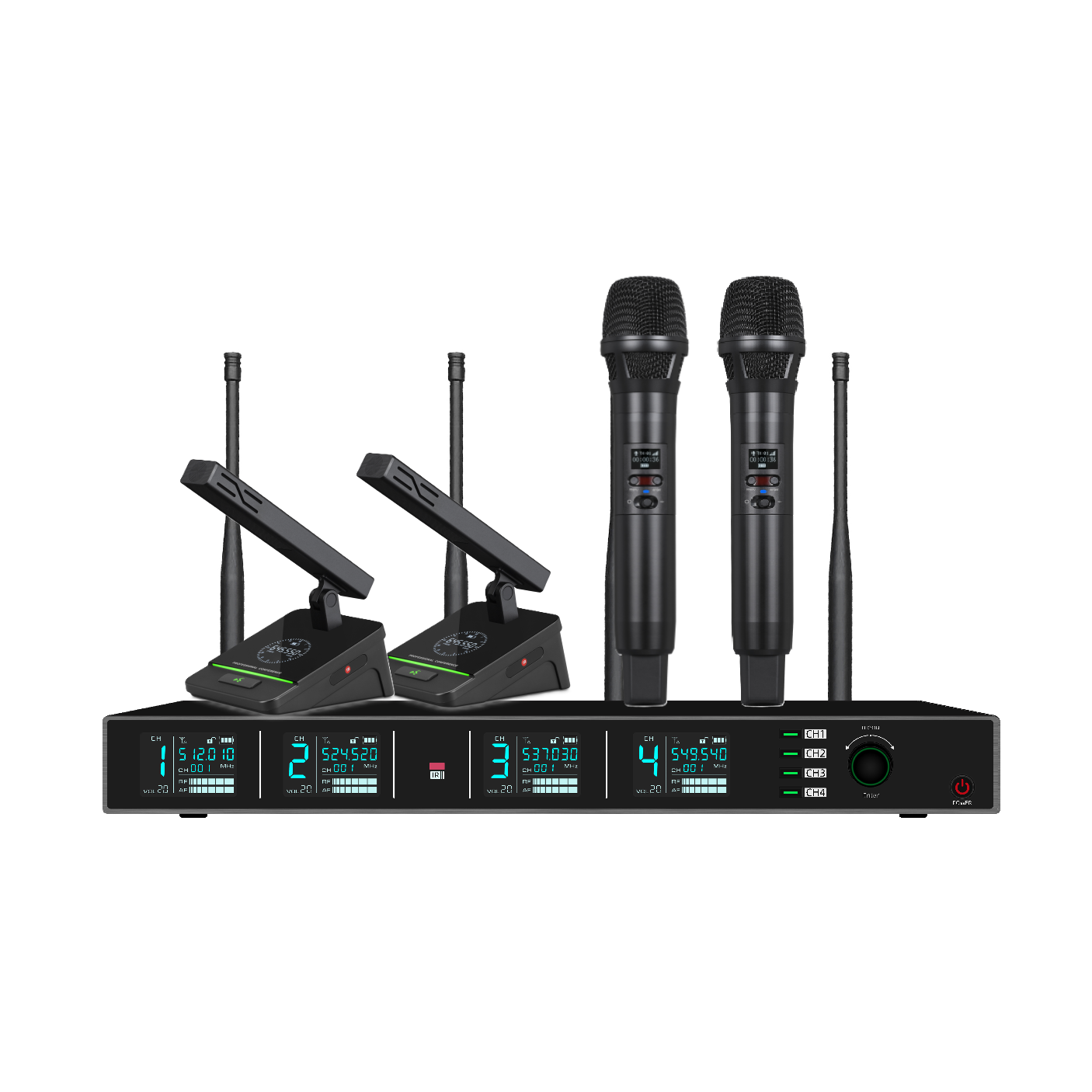

MKS-9800-X4 True Diversity Wireless Microphone System One-to-Four

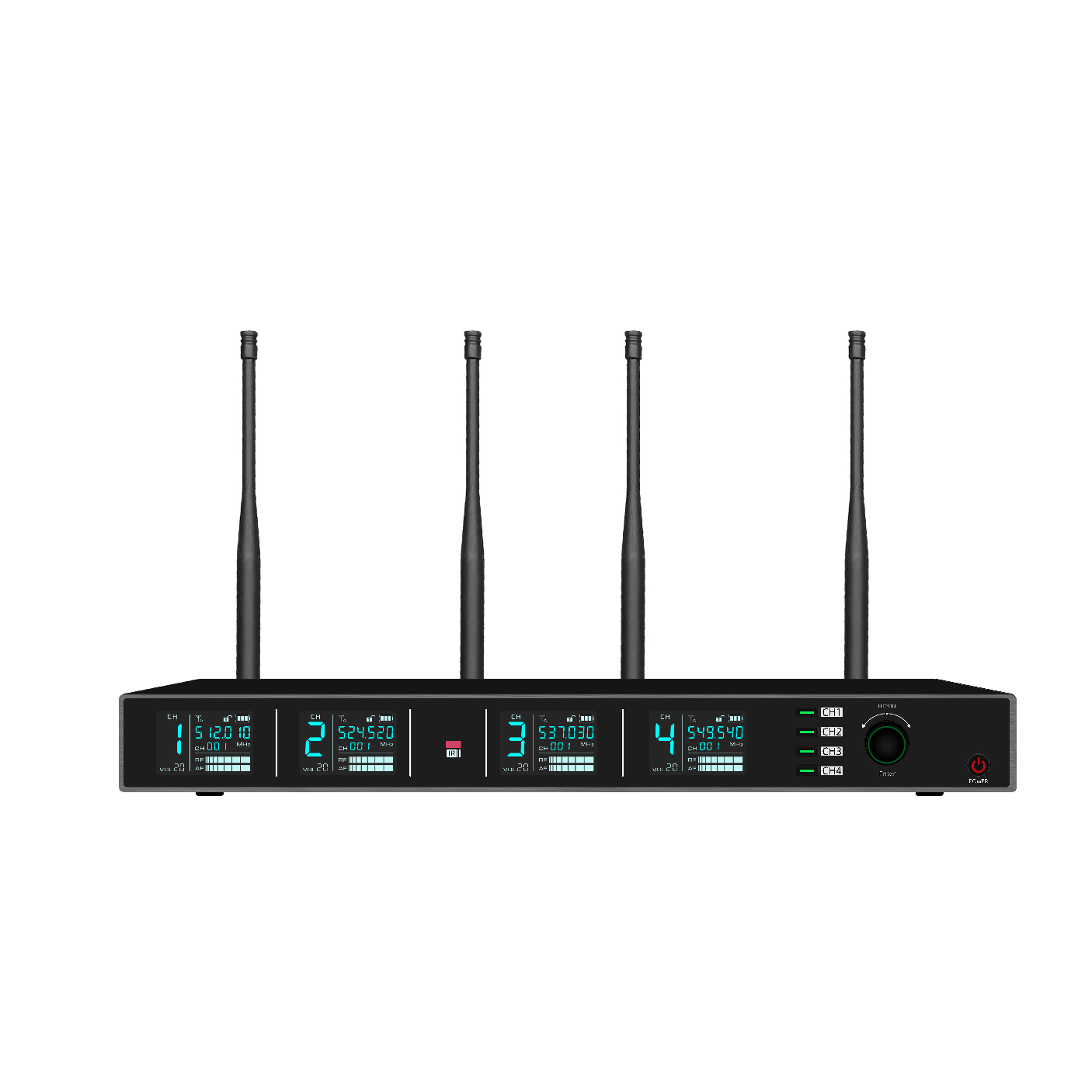

MKS-9800-X4 Receiver Host

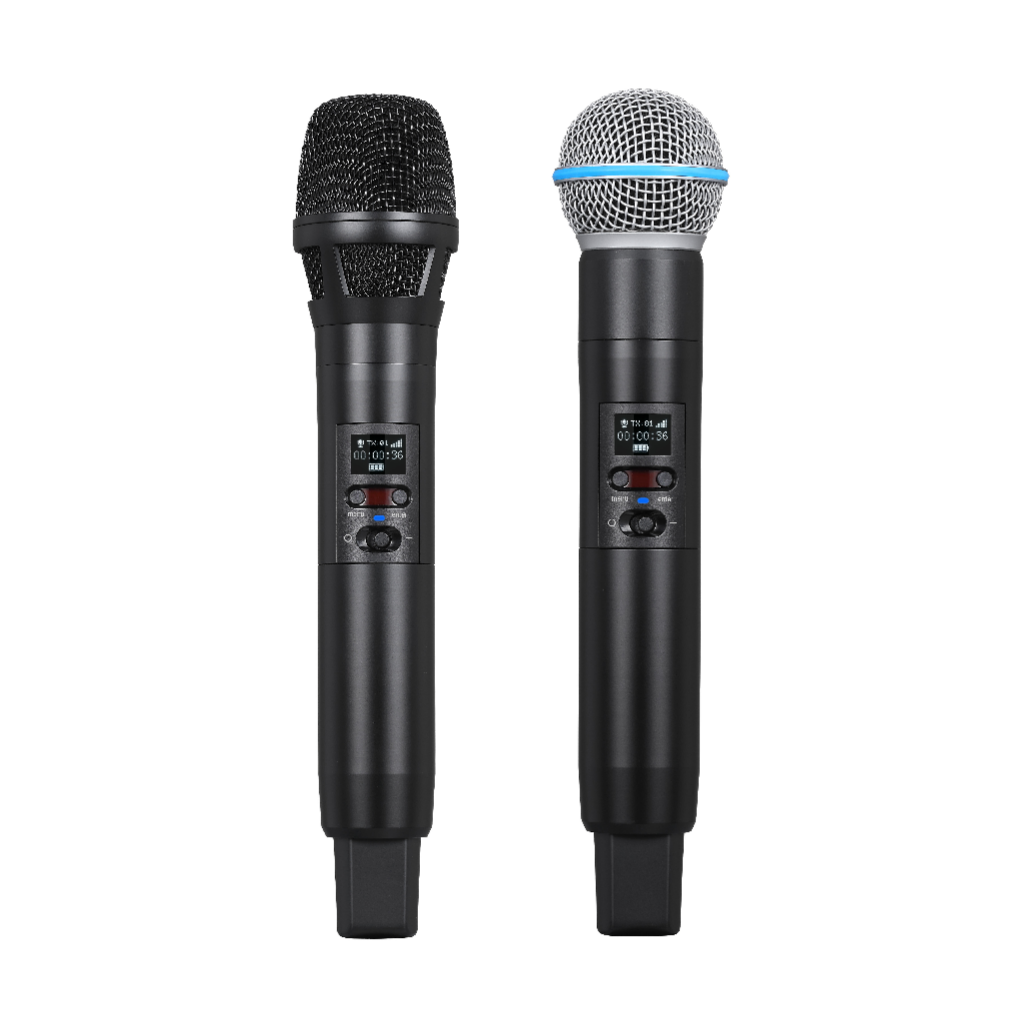

MKS-9800-X4 Handheld Transmitters

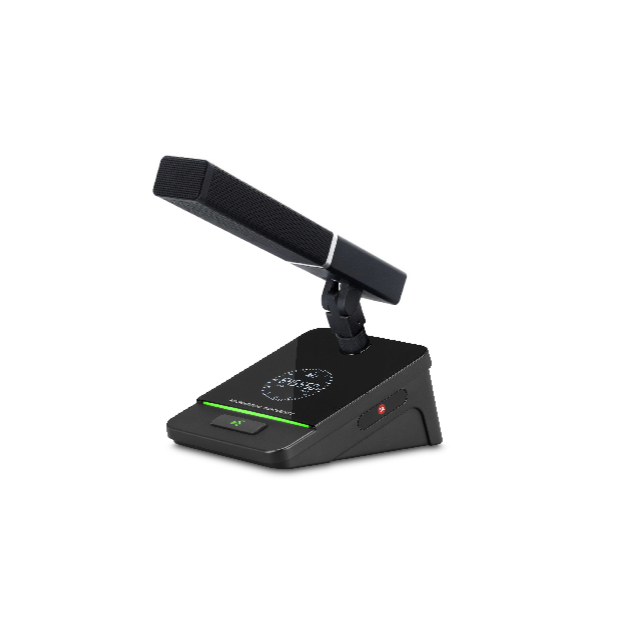

MKS-9800-X4 Square Tube Microphone

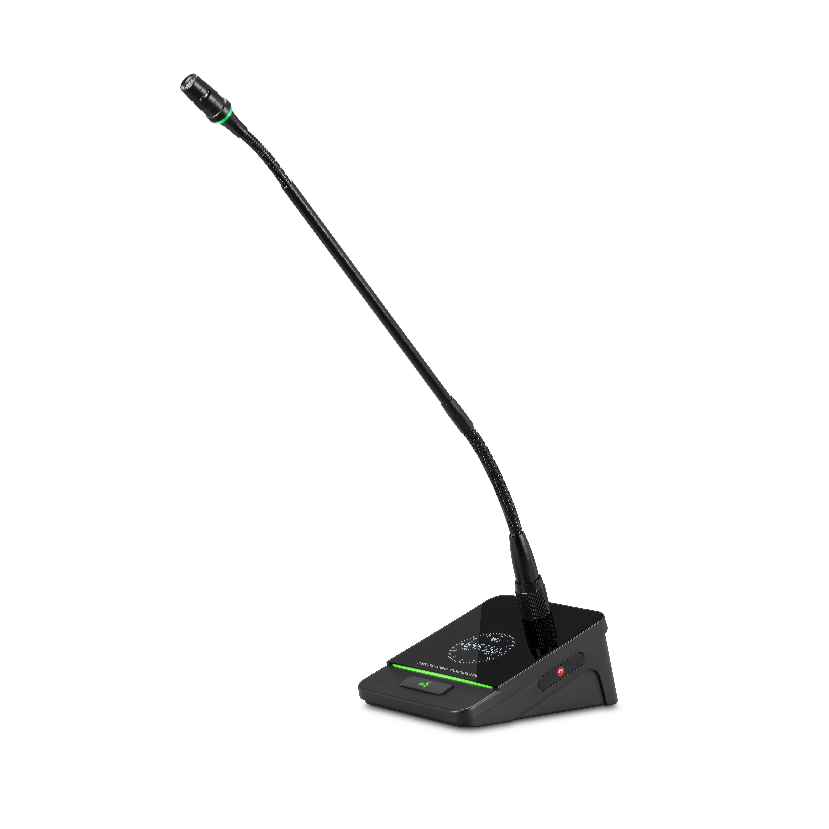

MKS-9800-X4 Long Gooseneck

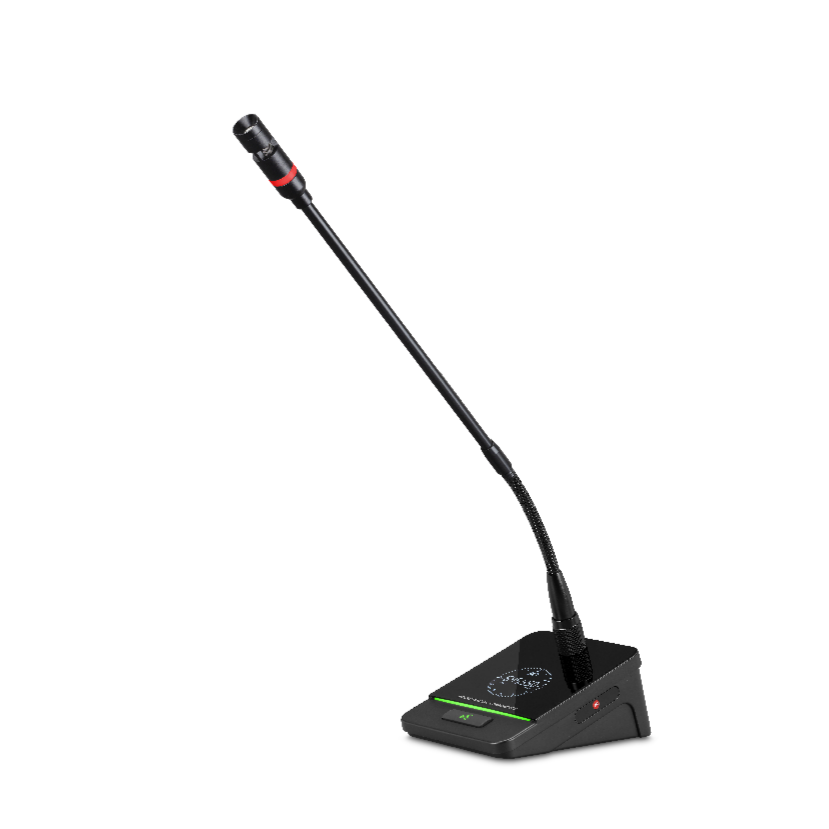

MKS-9800-X4 Gooseneck Variant

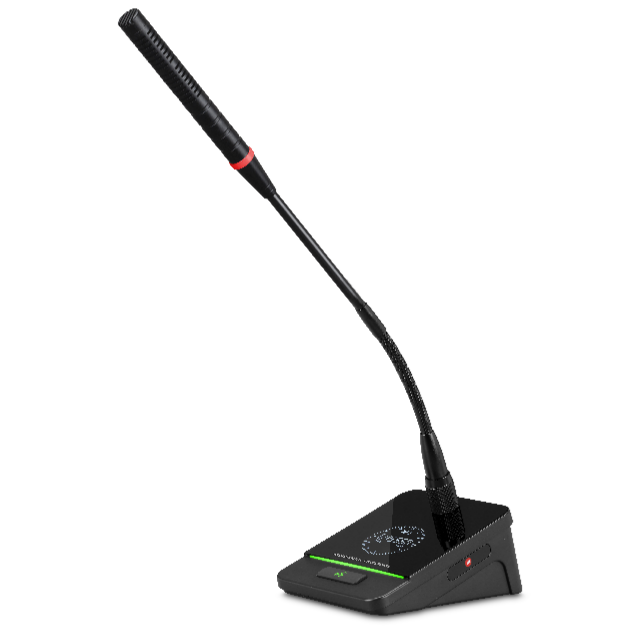

MKS-9800-X4 Standard Gooseneck

Maximize Rack Space, Minimize Signal Dropouts

The MKS-9800-X4 revolutionizes large-scale wireless deployments. By integrating four independent True Diversity receiver modules into a single rack-mountable host, AV technicians can effortlessly manage multi-speaker panels without the clutter of excessive receivers or complex antenna distribution systems.

Engineered with advanced PLL (Phase Locked Loop) oscillation, the system provides up to 200 selectable channels to bypass local RF interference. Whether you are mixing dynamic handheld microphones for a live stage or elegant square-tube desktop mics for a boardroom, the X4 system delivers broadcast-quality, zero-dropout audio.

Flagship Advantages

  • One-to-Four Architecture
    Four simultaneous microphone channels managed by a single intelligent receiver host.

  • True Diversity Reception
    Dual independent receiving circuits per channel completely eliminate RF dead spots.

  • Unmatched Clarity
    >100dB dynamic range with <0.3% THD ensures pristine vocal reproduction.

4-Channel Receiver Specifications

Parameter Details
Frequency Range 512-562MHz / 564-608MHz
Oscillation Mode PLL (Phase Locked Loop)
Maximum Channel Count 100 – 200 Channels
Frequency Response Range 20Hz – 18KHz (+3db)
Dynamic Range & Sensitivity >100db | Sensitivity: <-96dbm
THD & Image Suppression THD: <0.3% | Image Suppression: >85db
Power Requirements 12V / 1000mA DC power adapter

Transmitter Specifications (Interchangeable Options)

Parameter Details
Frequency Range 610-670 MHz
Input Impedance 5.6K Ω
RF Output Power 10mW
Sub Wave Suppression >60db

Global Manufacturing & Project Sourcing

Maccus Audio is the trusted factory partner for AV integrators and rental companies worldwide. Our scalable one-to-four wireless architectures dramatically reduce installation costs and rack clutter. Contact us for OEM frequency tuning and bulk project pricing.
