Does the MKS-9912 system use authentic vacuum tubes?

Yes, the MKS-9912 receiver utilizes physical vacuum tube amplification processing. This distinct hardware architecture delivers a rich, harmonically warm sound profile that standard solid-state receivers cannot replicate, making it ideal for professional vocalists.

What is the effective wireless range of the MKS-9912?

The system utilizes advanced PLL phase-locked loop frequency synthesis with quartz crystal locking. In open spaces, the effective working distance is generally over 70 meters, ensuring zero-dropout performance on large stages.

How long do the microphone batteries last?

Each handheld transmitter operates on two standard AA batteries. With a typical current consumption of 100mA, the microphones offer approximately 10 hours of continuous performance lifespan.

Professional Vacuum Tube True Diversity Wireless Microphone System | MKS-9912

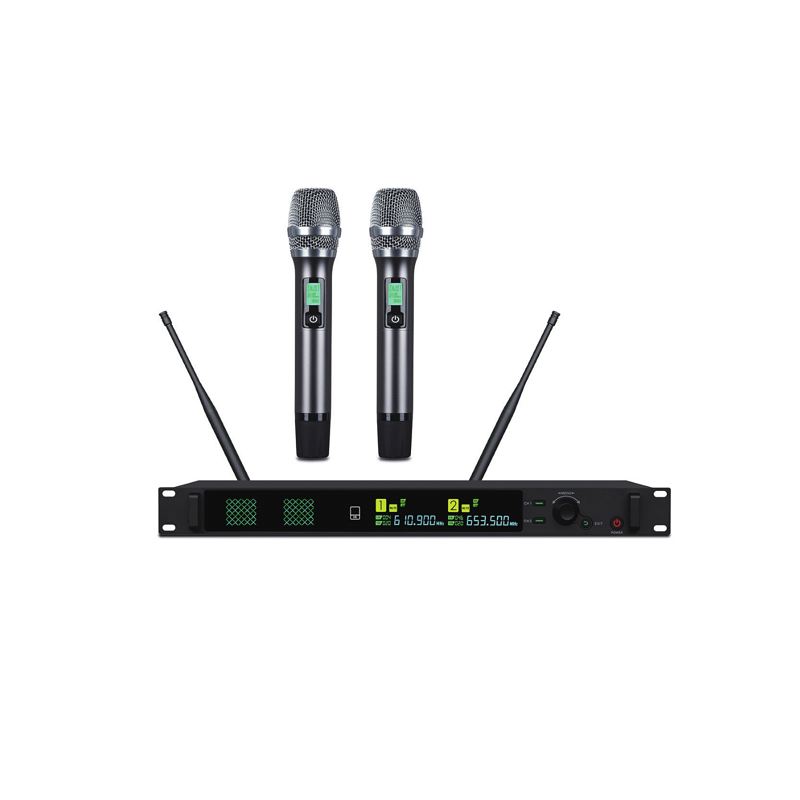

Name: MKS-9912 Professional Tube-Amplified UHF Wireless Microphone System
Brand: Maccus Audio
Availability: InStock

The MKS-9912 represents the pinnacle of professional wireless audio, combining the legendary warmth of vacuum tube amplification with the rock-solid stability of true diversity technology. Locked with precision quartz crystals for ultra-low frequency deviation, this system is engineered for elite vocal performances in professional theaters and high-end concert venues where audio texture and signal integrity are critical.

analytics
Full Technical Specifications

Receiver Specifications (Tube Amplified)

Chassis Specification

EIA Standard 1U

Channel Capacity

Dual Channel (200 Adjustable Groups)

Frequency Range

UHF 610 – 670 MHz

Frequency Stability

± 0.002% (Better than 15PPM Quartz Lock)

Audio Amplification

Vacuum Tube Processing

Receiver Sensitivity

10uV / -100dBm @ 50dB SINAD

Signal to Noise Ratio

> 100dB

Composite Distortion (T.H.D.)

< 0.2% @ 1KHz

Combined Freq. Response

55Hz ~ 16KHz ± 3dB

Effective Distance

> 70 Meters (Open environment)

Power & Dimensions

100-240V AC (10W) | 420 x 207 x 44 mm (2.81 Kg)

Handheld Transmitter Specifications

Sound Head (Capsule)

Dynamic / Condenser (Cardioid Directivity)

RF Power Output

10mW

Harmonic Radiation

< -63dBm

Battery & Lifespan

2x AA Batteries | Approx. 10 Hours

Weight

274.3g

Target Audience

settings_voice
Professional Vocalists & Recording Studios
theater_comedy
High-End Performance & Theater Venues
album
Audiophile System Integrators

Typical Scenarios

Live Stage

Professional concert stages requiring warm, tube-amplified vocal clarity.

Premium Event

Elite galas and award ceremonies where audio texture is paramount.

B2B Manufacturing & Audio Innovation

vibration

Vacuum Tube Warmth

Unlike standard solid-state receivers, the MKS-9912 utilizes vacuum tube amplification to deliver a rich, harmonically warm sound profile sought after by professional performers.

shutter_speed

Quartz Precision

System frequency is locked with high-precision quartz crystals (better than 15 ppm), ensuring an ultra-stable signal link for zero-dropout performance.

Global OEM/ODM Partnership

Maiku Electronic Tech provides specialized engineering for tube-based wireless systems:

Custom Tube Circuit Architecture
Private Branding (Laser Marking)
Regional Frequency Band Compliance

Direct Source: Enping, China • ISO 9001 Facility

Request Wholesale Quote
